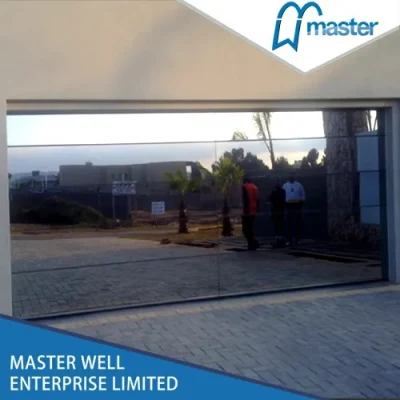

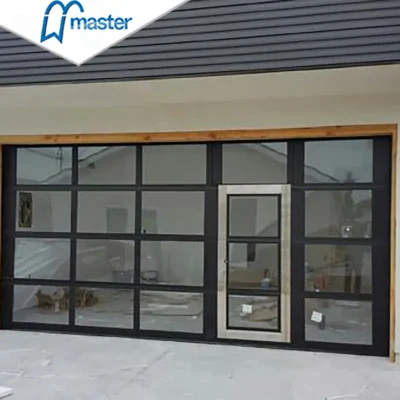

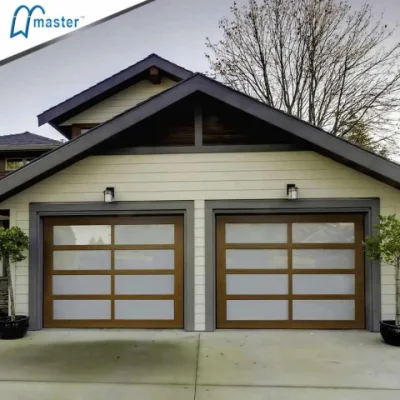

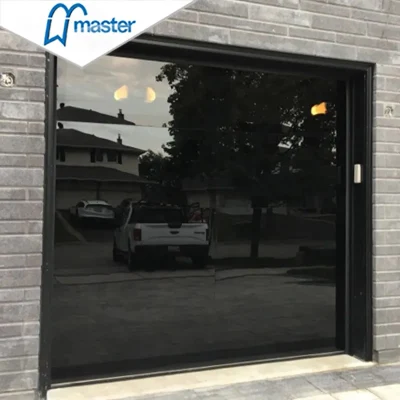

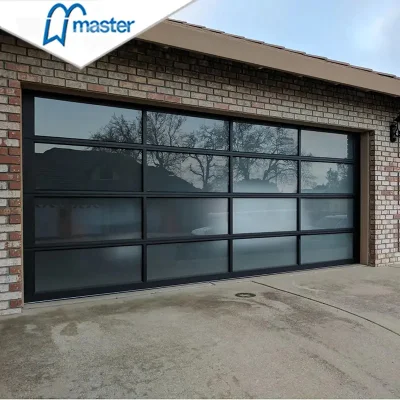

Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors

Get the best deals on Master Well New Design Modern Aluminum Tempered Full View Glass Garage Doors at factory direct prices. Our mirror plexiglass panel doors are designed for durability and style.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Packaging & Shipping
  • Company Profile
  • Certifications
  • FAQ
Overview

Basic Info.

Model NO.
AN5081, AN5005, AF4050
Motor Shaft
3-4.5m
Power
80-180W
Output Torque
800-1800n
Door Panel Pattern
Square
Color
Customized
Surface Finishing
Finished
Model Number
Af4050/An5081us/An5005za
Panel Width
Within 610mm, Adjust
Tracks Material
Galvanized Steel Single Track/Double Track
Max Available Panel Length
5.8m (to Fit The Container)
Frane Color
Anodized / Powder Coated in More Than 60 Colors
Pedestrian Door
Available
Wind Resistance
Class 3
Water Tightness
Class 3
Noise Level
20dB
Foam Insulation Value
13.73
Certificate
CE Approved, ISO9001
Service Life
10years
Enterprise Nature
Manufacturer and Trader Since 2009
Application
Garage, Shopping Mall, Automobile Sales Servicshop
Target Marget
Europe, America, South Africa, Australia
Transport Package
Carton/Wooden Case
Specification
Customized Size
Trademark
Master
Origin
China
HS Code
7610
Production Capacity
200000 Sets/Year

Product Description

Product Description


Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors
>> Panel Model

Model AF4050 AN5081US AN5005ZA
Interface: Finger Prtection No Finger Prtection No Finger Prtection
Frame: Frame visible on the front Frame visible on the front Frame is not visible on the front
Thickness: 40mm 50mm 60mm
Feature: Can be connected to the foam door panel SF40S Profile can be PU foamed Profile can be PU foamed
Pedestrian: Available Available Not available
Optional glass type: 3mm PC board single layer, 3mm PC board double layer, 4mm PC board single layer, 5mm tempered glass 3mm PC board single/ double layer, 4mm PC board, 5mm or 8mm tempered glass, 4+4mm double layer laminated glass (adhesive color optional), 3+3mm spun silk glass,
4 + 6 + 4mm hollow glass
5mm mirror glass,
5mm silk printed glass,
3+0.3mm aluminum composite panel,
4+0.3mm aluminum composite panel

Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors
>> Garage Door Motor

General 800N   1000N  1200N  1500N  1800N
Input Voltage: AC 220V - 240V / 110V - 127V, 50/60Hz
Motor Power: DC 24V DC 24V DC 24V DC 24V DC 24V
Light Power: 10W/24V 10W/24V 10W/24V 10W/24V 10W/24V
Max.Lifting Force: 80KG 100KG 120KG 150KG 180KG
Max.Lifting Height: 3.60m 3.60m 3.60m 3.60m 3.60m
Motor Rail: 3.0 - 4.5m 3.0 - 4.5m 3.0 - 4.5m 3.0 - 4.5m 3.0 - 4.5m
Rail Type: Chain/Belt Chain/Belt Chain/Belt Chain/Belt Chain/Belt
Limit Setting: Electronic Electronic Electronic Electronic Electronic
Transformer Tech: Overload Protection Overload Protection Overload Protection Overload Protection Overload Protection
Soft Open&Close: Yes Yes Yes Yes Yes
Frequency: 433.92MHz/Rolling 433.92MHz/Rolling 433.92MHz/Rolling 433.92MHz/Rolling 433.92MHz/Rolling
Working Temp: 20 - +70ºC 20 - +70ºC 20 - +70ºC 20 - +70ºC 20 - +70ºC
Protection Class: IP20 IP20 IP20 IP20 IP20
Standard Kit: 1 Motor Head. 3.3m Motor Rail(Chain), 2pcs transmitter, Other Mounting Accessories

Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage DoorsMaster Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors


>> Hardware Kit(self-produced)

Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors

Hardware Choice:

- Standard Single Track (SST): 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm;

- Standard Double Track (SDT): 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm;

- L Profile support with Single Track (LST): 1 pair vertical track, 1 pair horizontal track with L profile support, needs min headroom 350mm;

- L Profile support with Double Track (LDT): 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, with L profile support,
needs min headroom 200mm

- L Profile support with Double Track & ABS curve (SLDT) : 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, L profile
with ABS curve, needs min headroom 200mm

Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors
Packaging & Shipping

1.Small quantity: Carton + Winding film + Wooden box
2.The full container quantity (20'GP/40'GP/40'HQ): Carton + Winding film
W2500*H2150mm, 80 sets/20'GP; W4930*H2150mm, 40 sets /20'GP.

Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors
>> Production Process
Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors

>> Sample Plate


Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors

Company Profile


Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors
Relying on our excellent business performance and R&D, we have exported to more than 120 countries and regions. We are now growing
up to about 100 people work team,including International Sales Department, Domestic Sales Department, Purchase Department, Financial
Department,Human Resource Department and Research and Development.We are always ready to provide the professinal service for you.


>>Related Equipment

Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors

Certifications



Master Well New Design Modern Aluminum Tempered Full View Glass Garage Door Price Mirror Plexiglass Panel Garage Doors

FAQ



Q1: What is your MOQ?
A:  No min order for glass garage door. We also suggest wooden cases package for protection during shipment.

Q2: What is the Max available size of the panels?
A: The max length of panels can be 6M. The max width of panels is 610mm, adjustable.

Q3: Can you do the full set products according to my project drawing?
A: Yes, our engineers will check your engineering drawings to ensure the accuracy of each different accessory and quantity.

 Q4: Can I get a sample of glass garage door for quality check?
A: Sample is available.

 Q5: How can I get a price of needed glass garage door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

 Q6: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

 Q7: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

 Q8: How to install your product, is it difficult?
A: Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have
any question. Of course we can offer on-site installation guide services if you need.

Q9: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Garage door, Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers.
We produce parts by ourselves in order to control quality and cost.

Q10: Could you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide a regular size quotation.
