Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet

Discover high-quality aluminum composite wall panel, FRP plastic composite sandwich panel, and GRP sheet at our factory. Modern design for all your construction needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Detailed Photos
  • Product Application
  • Company Profile
  • Factory Workshop
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
FRP XPS Sandwich Panel
Performance
Light Weight & High Intensity
XPS Density
30-40kg/M3
Application
Truck Body ,Caravan,Incubation
Material
Fiberglass Skin with XPS
Product Name
FRP Prelaminated XPS Foam Panel
Maximum Width
3000mm
Maximum Length
12000mm
XPS Foam Thick
17-100mm
FRP Skin Thick
1-3mm
Thickness
20-100mm
UV Resistant
Optional
Transport Package
There′ S Protective Film on Each Panel.
Specification
3000*12000mm /maximum
Trademark
Hengyi
Origin
Jiangsu China
HS Code
7019909000
Production Capacity
50000 Pieces Per Year

Product Description


Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet

Product Parameters


XPS foam sandwich panels are one of the most popular foam sandwich composite panels, which is a typical representative material combining strength and lightweight.Its core material is closed-cell extruded polystyrene foam, and its skin material has a variety of options (fiberglass,aluminum,HPl,etc.). The skin and core are bonded together by vacuum compression molding using high-quality polyurethane glue as an adhesive.

Item
XPS Foam Core Sandwich Panels
Skin Material
FRP Sheet,  Aluminum Sheet, Plywood, Stainless Steel, etc
Core Material
XPS(extruded polystyrene) Foam Board
Width
≤3.2m
Total Thickness
10~120mm
Length
≤12m
Core Density
30~50kg/m³
Skin Color
RAL Color Series
Processing
CNC Machining, Embedded Structure

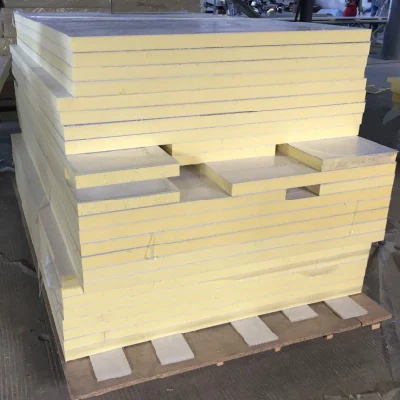

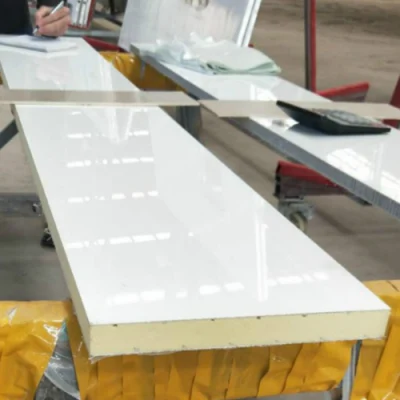

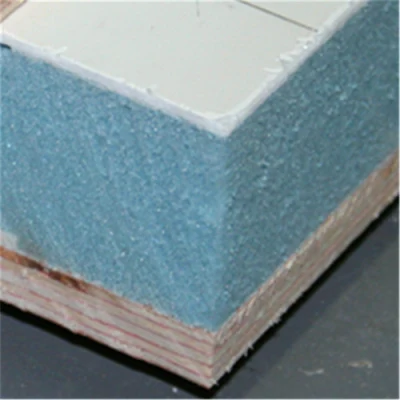

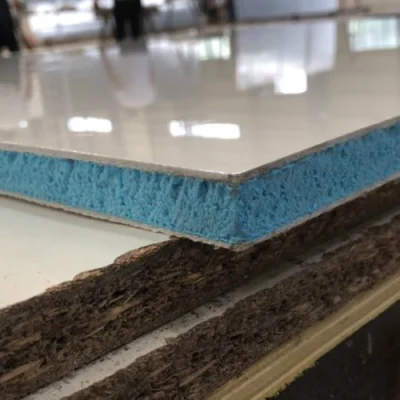

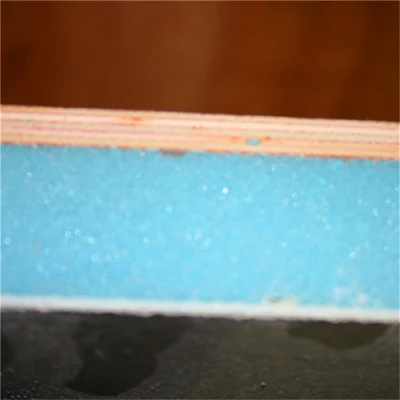

Detailed Photos

Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP SheetGood Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet

Product Application



Application for FRP XPS Foam Core Sandwich Panels
RVS XPS sandwich panels are  the most popular RV body panels. Such as wall panels  floors. and roof panels for
caravans. travel trallers.campers. mobile vilas. etc.

Trucks It is suitable for storageand transportation of medicines. fresh meat.egetables. cold drinks.firuits. etc. t is one of the
most important materlals for refrigerated truck bodyand refrigerated room.

Building XPS sandwich panels arewidely used in buildings
that require heat insulation and light weight sucn as temporary houses.mobile villas. mobile toilets etc.. which greatly reduce
the cost of buildingconstruction.

Furniture XPS sandwich panels areused as interior furniturematerials such as tables.chairs, beds, ceilings,cabinets, doors, etc.


Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet


Company Profile

Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet

Yangzhou Hengyi Composite Materials Co.,Ltd. established in 2016.We are located very close to
Yangzhou airport,which only takes 10minutes by car.We enjoy more than 15 years working experience
in FRP industry.
Yangzhou Hengyi Composite Materials Co., Ltd was formed in 2016. With more than 10years experience, we are
one of the leading manufacturer in making FRP sheet, sandwich panels.

Located at Jiangdu in Yangzhou China, we are a specialist designer and manufacturer of fibreglass composite
insulated panels. Our capabilities extend across a wide range of applications for the RV and transport industries
such as mobile homes, caravans, trailers and truck bodies. We also manufacture panels for the boating, building
and construction industries to just about any job that requires an insulated composite panel

We have wide range of sandwich panel products. The most popular ones are FRP plywood panel, Honeycomb Panel,
XPS, PU and EPS Foam panels. The surface -FRP skin on top and bottom of the sandwich panel can be versatile.
There′s flat smooth finish, anti-slip pattern, pebble embossed.

As a result. There could be plenty matches to cater customers′ different requirements.

Currently, the maximum size we can make is 11.5m*2.85m.

We execute strict workflow. Every step is assigned to certain people. The main procedures include material preparation,
spraying, roll coating, bonding, cutting, polishing, cleaning and packing. Our staffs′ strong values are based on providing
our customers with the very best in service, products and advice. Meanwhile we offer our staff the ability to work in
diverse roles, to be challenged and learn new skills.

We use vacuum tech to ensure good bonding. With good quality and service, now our panels are exported all over the
world. Besides, we are really close to Yangzhou Taizhou international airport, only 10 minutes by car. Welcome to visit
and grow with us!







Factory Workshop

Our workshop has an area of 130,000square meter.
We have 70 workers of which 30wokers has 20years of experience in this industry which others has
least 5years experience.All of them are well and regularly trained.

Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet


Packaging & Shipping

Package
Option
1.Plywood Pallet
2.Plywood Case
3.Customized
Delivery 1.Samples: 2-3 days if we have in stock
2.Mass Production: 15 working days
3.Delivery terms:EXW,FOB,CIF,DDP
Notes There's protective film on each side of the panel.
Different colors are used to identify top surface

Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet
Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet Good Selling Modern Design Aluminum Composite Wall Panel FRP Plastic Composite Sandwich Panel GRP Sheet

FAQ

1.Are you factory or trading company?

   We are abosultely factory.It's very close to airport,only 9minutes by car from Yangzhou airport.

2. Can I order panels to my exact dimensions ?
Yes,so panels  are ready to be mounted to the exact dimensions required.

3. I need to fix some track to an insulated panel, what should I do ?
   We have two solutions:
    you supply drawings of your panel showing the type of insert, its dimensions and position. We then manufacture
the panel to these drawings. Alternatively, you         indicate the position of your track and we will attach it to the
panel for you; either recessed or semi-recessed.

4. How are your panels packed ?
   There's protective film on both sides of each panel.
    Panels then into pallet.
   These packs are covered with polythene to protect the panels during transport.
   Each pack is placed on wooden supports to facilitate unloading either using straps or with a fork-lift.

5. What advise can you give on handling panels ?
Our panels are transported flat on platform trailers. We do not advise the use of fork-lifts for unloading long
panels due to the risk of bowing which can lead to cracking of the gelcoat. We recommend the use of a suction
lift taking care when unloading thin panels.

6.How should I stock my panels ?
Ideally, you should stock panels as we do in the factory. Flat on wooden supports which are lined up one under
the other to prevent distortion of the panel. The edges of composite panels should be protected from the
elements before use and stocking panels outside is not advisable. The use of a tarpaulin to protect panels
should only be considered a temporary measure as it can retain humidity and cause condensation to damage
panels, especially if colour impregnated.

7.What warranty do you provide on your panels ?
Our statutory warranty is for 12 months. We can extend this warranty as an option.
Our warranty covers manufacturing faults but does not cover problems relating to an incorrect mounting or
errors of handling or stocking.
