Dry Operation and Environmental Protection of Wall Board for Construction

GreenGuard Dry Operation Wall Board - Environmentally friendly construction material. Factory direct, sustainable production. Protect the environment today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
zjt panel-1001
Fire Rating
4
Certification
SGS, TUV
Customized
Non-Customized
Facing Panel
Fiber Cement Board/Calcium Silicate Board
Core Material
Cement, EPS and Sand, Fly Ash
Certificate
TUV, SGS
Light Weight
1 Person Can Take up Two Pieces
Application
Wall/Roof/Floor
Installation Speed
15sqm/Person/Day
Fireproof Limit
>3hours
Anti-Pressure
>3.5MPa
Hanging Force
1000n
Anti-Bending Damage
>3.5MPa
Bulk Density
550-650 Kg/M*2
Softening Coefficient
>0.8
Sound Insulation
42dB
Insulation Height
>10m
Moisture Rate
<10%
Transport Package
Pallet+Pearl Wool+Corner Paper+Belt+Plastic Film
Specification
60/75/90/100/120/150mm
Trademark
ZJT
Origin
Fujian, China
HS Code
6810999000
Production Capacity
10000 Sqm Per Month

Packaging & Delivery

Package Size
15.00cm * 20.00cm * 20.00cm
Package Gross Weight
2.000kg

Product Description

Product Information
ZJT Light Composite Energy-saving Sandwich Wall Panel is composed of face panel and interior filling. The quality and technology of product have reached to a new level and become the leading brand among the similar products.
The product has solid,lightweight,thin,better strength,impact resistance,hanging strength,heat insulation,sound insulation,fireproof,waterproof,easy cutting,pet and rot resistant,increasing usable space. It can be arbitrary slot,without batch file,dry operation,enviroment protection,which achieve energy conservation and energy efficiency. At the same time,this reduces the total area to be occupied by the wall and to raise residential practical area,alleviates the structure load,improves the building aseismatic capacity and safety performance,and reduce total cost. This production technology and application is the reform of our country wall material,is a new breakthrough.
The company relying on advanced equipment,first-class technology,excellentquality,strong,productivity,favorable customer service system,has set up the good brand image in the market,and been widely recognized by the same.


Dry Operation and Environmental Protection of Wall Board for Construction Dry Operation and Environmental Protection of Wall Board for Construction

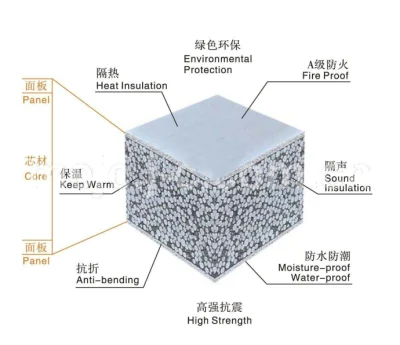

Product Composition
Surface: fiber cement board
Interior filling materials:  EPS , cement, fly ash ,  sand , additive

Dry Operation and Environmental Protection of Wall Board for Construction
Product Advantages

Dry Operation and Environmental Protection of Wall Board for Construction
Energy saving, Green, Environmental friendly :
no harmful substances.
Durable:
70+ years building life span.
Strong :
single spot is 100kg; nail  and affix tile.
Fireproof :
rating of 4 hours
Waterproof, Dampproof:
No bead on wall panel surface


Sound insulation :
 35db-45db
Quakeproof  :
 seismic & cyclone prone zones
Rapid installation :
One worker can do 20 sqm every day
Dry working :
less building rubbish
Excellent surface finish :
directly for inner decoration
Dry Operation and Environmental Protection of Wall Board for Construction

Product Size
Thickness: 60/75/90/100/120/150mm
Length: 2270/2440mm
Width: 610mm
*The sandwich panel size can be customized accroding to the needs of users' requirements
Dry Operation and Environmental Protection of Wall Board for Construction
Thickness: 60/75/90/100/120/150mm

Length: 2270/2440mm

Width:
610mm

*The sandwich panel size can be customized accroding to the needs of users' requirements

Technical Index
Item Testing Indexes
Thinkness[mm] 60 75 90 120 150 180
Anti-impact Capacity/Items
[standard sandbags/times]
≥5 ≥5 ≥5 ≥5 ≥5 ≥5
Anti-bending Damage Load
[times over deadweight]
≥3.0 ≥3.0 ≥3.0 ≥5.0 ≥5.0 ≥7.0
Compressive Stregth [Mpa] ≥3.5 ≥3.5 ≥3.5 ≥3.5 ≥3.5 ≥3.5
Softening Coefficient ≥0.8 ≥0.8 ≥0.8 ≥0.8 ≥0.8 ≥0.8
Surface Density [kg/m2] ≤70 ≤70 ≤90 ≤110 ≤110 ≤130
Moisture Rate [%] ≤10 ≤10 ≤10 ≤8 ≤8 ≤8
Drying Shrinkage Value [mm/m] ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
Hang Force [N] ≥1000 ≥1000 ≥1000 ≥1000 ≥1000 ≥1000
Sound Insulation Capacity In The Air [dB] ≥35 ≥35 ≥40 ≥45 ≥50 ≥55
Fire Endurance [H] ≥1.5 ≥1.5 ≥2.5 ≥3.0 ≥4.5 ≥6.5
Heat Transfer Coefficient [W/m2.k] ≤2.0 ≤2.0 ≤2.0 ≤2.0 ≤2.0 ≤2.0
Inner Radiation Index ≤1 ≤1 ≤1 ≤1 ≤1 ≤1
Outer Radiation Index ≤1 ≤1 ≤1 ≤1 ≤1 ≤1


Product Application
widely used:
office,residential building,school,hospital,hotel,public construction,entertainment place.
wall/exterior wall/interior wall/super high wall/abnormity wall/roof/floor/prefab building/
pipe/fire well/equipment partiton
1).Interior partition (60/75/90mm is your best choice)
2).Exterior Wall (100/120/150mm for your reference)
3).Floor and roof
4).prefabricated houses
5).Modern high-rise Building
6).Schools, Hotels, office
7).Indoor space of ecological residences
8).All kinds of houses and structures

Dry Operation and Environmental Protection of Wall Board for Construction Dry Operation and Environmental Protection of Wall Board for Construction




Installation Process
Dry Operation and Environmental Protection of Wall Board for Construction
Notice: Adjustment have three steps. The first is  reinforce on bottom . The second is  reinforce on top . The third is  reinforce on the left and right .

Packing & Delivery
1).Held by wooden Pallet or without Pallet;
2).Bonded with plastic belts;
3).Fasten around the corners;


Dry Operation and Environmental Protection of Wall Board for Construction

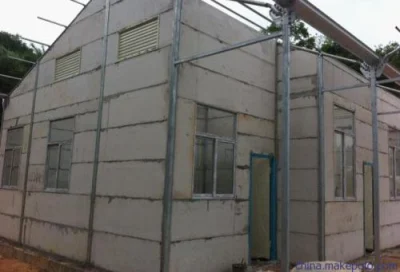

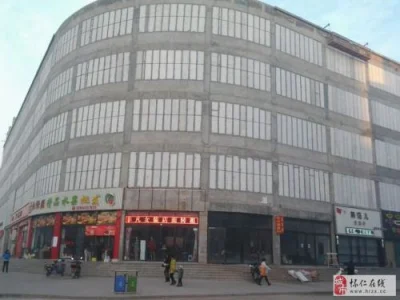

Projects
  Dry Operation and Environmental Protection of Wall Board for Construction

Trade Terms
1).Payment: T/T or L/C at sight;
2).Lead time: 20-25 Working days;
3).Shipping freight are quoted under your requests;
4).Shipping port: Xiamen port, Mainland China;
5).Discount: based on the order quantity;


Company infomation
In the trend of low-carbon and energy-saving in domestic, ZJT is on a mission environmental protection, and actively promoting the development and popularization of green building materials. The composition of the materials of ZJT energy-saving wall panel strictly implements national GB6566-2001Building Materials Radionuclide Limited standard, which belong to the main of the radioactive building materials and a kind of decoration materials, 100% do not contain harmful substances in humans, and in high temperature combustion state, the release of excessive part also can be operated in an efficient range so it has no direct threat to human. At the same time, the construction of the product itself almost do not produce construction waste, in the demolition of buildings the product has the reuse rate of as high as 72%-93%, so these features make it surely become one of the most environmental protection administration of green environmental protection building materials.
Dry Operation and Environmental Protection of Wall Board for Construction Dry Operation and Environmental Protection of Wall Board for Construction
