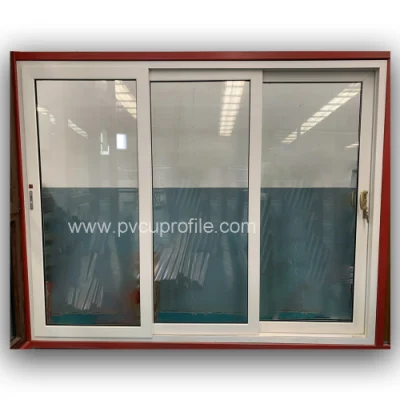

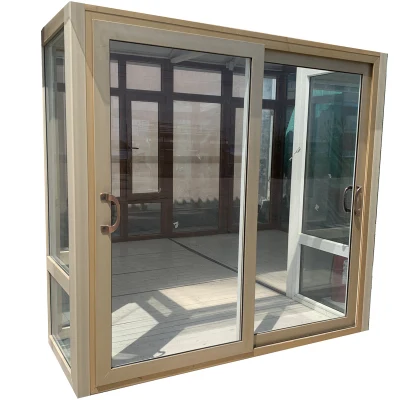

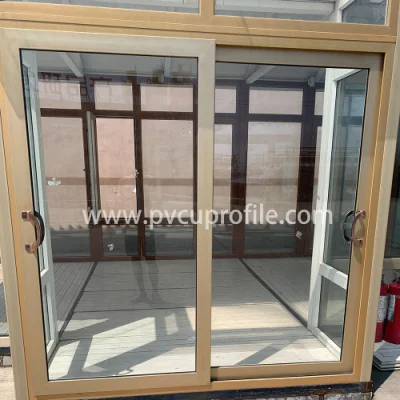

Double Glazing Exterior Sliding Front Patio PVC Glass Doors

Factory-direct Double Glazing Exterior Sliding Front Patio PVC Glass Doors. Quality and durability for your home. Order now for a stylish upgrade.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
LMWD
Security Level
A
Wind Resistance Performance
3.5≤P3<4.0
Position
Room
Color
Multi Color
Customized
Customized
Glass Type
Single, Double, Tripple Layers etc.
Reinforce Steel
Galvanized
Sealing Rubber
EPDM,PVC,etc
Accessories
Plating,Anodzing,etc.
Glass
Tempered,Laminated,Low-E,etc
Surface Process
Laminated,Coated, Co-Extrusion,etc.
Custom Design
Avaliable
Transport Package
Packed by Protection Wrapper
Specification
As requested
Trademark
Lumei
Origin
Shandong, China
HS Code
3916206000
Production Capacity
36000sqm/Year

Product Description

Double Glazing Exterior Sliding Front Patio PVC Glass Doors

Double Glazing Exterior Sliding Front Patio PVC Glass Doors


SPECIFIC.

Window/Door Design European Style, American Style
Product Material Original Raw UPVC
Property  Lead-free (eco friendly), UV Resistance, Anti-aging, Fade-proof, Heat Preservation, Noise Reduction, Energy Efficient
Certificates CE, ISO, Rohs
Glass Option Clear Glass, Tempered Glass, Laminated Glass, Frosted Glass,Insulated Glass(Argon Filled), Reflective Glass, Colored Glass,etc.
Window/Door Color Custom Made
Hardware Custom Made
Reinforcing Galvanized / Thickness≥1.5mm


WHY CHOOSE UPVC

 *Great leakproofness
 * Flexibility of choosing hardwares
 * Resist cold and stay cool based on different climates
 * Controling noise
 * Non-pollution
 * Competitive Costs
 * Easy to install and clean
 * Long working life
 * High-level safety

Double Glazing Exterior Sliding Front Patio PVC Glass Doors




FEATURES OF LUMEI UPVC WINDOWS & DOORS.

All uPVC profiles are made of original material with lead-free formula. The stablizer is enviroment-friendly and will not result in any pollution by sulfuration reaction. In addition to that,we choose the matched and stable formula according to different climates to ensure a long working life for all windows which have a excellent performance on anti-aging and UV resistance etc.

Based on a big sizes on wall thickness, the entire body structure of windows will be reinfored by galvanized steels inside the chamber. They also can be a basis of installation for accessories such as locks,hinges etc.All necessary parts are well jointed.

Glass is about 70-80% of the whole window,so it play an important role in thermal insulation and noise insulation. We got single glazing, double glazing and tripple glazing for options.Moreover, you can choose the glass prcess inclding tempered glass, laminited glass, Low-E glass etc.
Double Glazing Exterior Sliding Front Patio PVC Glass Doors



AVALIABLE CRAFT

Regular White Profiles-- Windows made of white uPVC profiles are commonly used in all kinds of buildings. According to climites in differernt regions, this white uPVC profile has a good performance on anti-uv and anti-aging.

Homogenous Profiles--The whole body of this window frames are same color.The stability is good enough during it working period.

Profiles with Laminated Foils--Laminated with foils on the surface, the window looks very nice.In order to meeting many different requirements for both apperance and performance, we provide customers with uPVC profile with laminated film which includes wooden grain,walnut,smoky gray,golden oak,brown,etc. In addition to that, this craft get the function of anti-UV and weather resistance improved to a higher level.This makes it to be a high-end series and well welcomed by customers.

Co-extruded Profiles--The windows only get colors on both visible sides. Compared with homogenous type, it spends less and has great properties as well.




Double Glazing Exterior Sliding Front Patio PVC Glass Doors



Double Glazing Exterior Sliding Front Patio PVC Glass Doors




COMMON WINDOW TYPES
 *Casement Window
 *Sliding Window
 *Fixed Window
 *Top-hung Window
 *Combination Window

Double Glazing Exterior Sliding Front Patio PVC Glass Doors




GLASS
We provide single,double-layer or tripple-laryer glass on specification of 5mm,6mm,5+9+5mm,5+12+5mm,5+9+5+9+5mm,5+12+5+12+5mm, etc.The glass type includes tempered glass,laminated glass,insulating glass(Argon filled),Low-e glass,heat-reflecting glass etc.
Double Glazing Exterior Sliding Front Patio PVC Glass Doors


GALVANIZED REINFORCING
 *Thickness:≥1.5mm
 *Shape: Square,U and other types according to structure inside the uPVC profiles.
 *Property:Corrosion Resistance & Rust-proof.

Double Glazing Exterior Sliding Front Patio PVC Glass Doors



HARDWARE
The reasonable design for lock groove of uPVC profile make it possible to accept different hardwares.




Double Glazing Exterior Sliding Front Patio PVC Glass Doors



Double Glazing Exterior Sliding Front Patio PVC Glass Doors



ADAPTION FOR DIFFERENT CONDITIONS
According to some extreme climates,we make uPVC windows and doors with functions of anti-aging,anti-UV and long lasting.






ELABORATE PROCEDURE & QUALITY TESTING

 1-uPVC Profile Production:  uPVC profiles are finished under rigorous production and testing before they go into next step.

 2-Profile Cutting: uPVC profiles including main type and auxiliary type will be cutted into 45° angle at both ends.

 3-Drilling Holes: The drain holes will be made by drilling machines.

 4-Reinforce Steel: Galvanized steels with thickness of more than 1.2mm are put inside the chamber of main profiles as a reinforce.

 5-Frame Welding: Profiles with reinforce steel will be welded and combinated by welding machine to form a window structure.

 6-Corner Cleaning: Corner become more smooth and looks nice under the help of a corner cleaning machine.

 7-Hardware Installation: Handles, locks, rollers, tracks,wind brace and other needed accerrories are equipped with windows.

 8-Quality Testing: The finished windows will be under strict testing before sale or shipment.

Double Glazing Exterior Sliding Front Patio PVC Glass Doors




Double Glazing Exterior Sliding Front Patio PVC Glass Doors
