Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room

Get the best quality Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room at our factory. Durable, efficient and reliable.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YO-Zipper
Type
Rolling
Open Style
Rolling
Opening Type
Induced
Special Function
Self Reparing
Color
Red/Blue/Yellow/Green/Gray/Ornage/Transparent
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Power Supply
1-Phase 220V, or 3-Phase 380V
Steel Structure
304 Stainles Steel or Powder Coated Gi
PVC Fabric Thickness
0.8/1.0/1.5mm.
Transparent Window Thickness
2.0mm
Installation Area
Exterior or Interior
Wind Resistence
25m/S
Working Temperature
-35 to 65 Celsius Degree
Transport Package
Export Wooden Box
Specification
Max size 6m*6m
Trademark
YUOU
Origin
China
HS Code
85308000
Production Capacity
5000pieces/Year

Packaging & Delivery

Package Size
3000.00cm * 600.00cm * 800.00cm
Package Gross Weight
300.000kg

Product Description

Description
Clean Room High Speed Rolling Up Doors are widely used for food and drug factory, clean room and dust-free workshop, they fit for the areas where have very strict requirement of the hygienic and cleanness indoor requirement.
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
Technical data:
Clean Room Roller Shutter Door Control Box High Speed Plastic Door
Max dimension
width * height 5000mm*5000mm
Power supply
220±10%V, 50/60Hz. Output power 0.75-1.5KW
Normal speed
open1.2m/s close 0.6m/s
Max speed
open 2.5m/s close 1.0m/s
Protection Level Of Electric
IP55
Control system
servo type
Driving system
servo motor
Wind resistance
Beaufort scale8(25m/s)
available colors of fabric
yellow ,blue ,Red ,grey,white

Structure Diagram:
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
Product Details:

1. PVC Fabric:
A.Material:PVC Fabric;Standard 1.0mm thick(950g/sqm);
B.Available thickness:1.2mm-1.5mm;Flameresistant material.

Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
2. Frame and tracks:
Two guide rails,one top cover and one motor cover included.Thickness:1.5mm for guide rail,1.0mm for cover box.
A.Standard material:Galvanized steel,surface is painted.
B.Optional material:304 stainless steel or aluminum alloy.
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
3. Self-Repairing rail structure:
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
4. Motor and Controller:
A.Italy servo technology motor.More stable and quicker response.
B.Italy servo technology controller with English interface,easy to use.
C.Double encoder,absolute encoder+inbuilt incremental encoder,more accurate and few maitenance.

Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
5. Colors:Blue\Yellow\Orange\Grey\White\Full clear\Green
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
6. Safety devices(Below three devices are included as standard):
A.Safety photo cell sensorWhen there is human or vehicle under the door,the door will stop closing and get up automatically.Thiswill avoid accident collisions.
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
B.Safety bottom airbag sensor
When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
C.Alarm light and emergency buttons
The lamp flashing to warn passing human or vehicles.And buttons on both side.
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
7. Operation methods:

Vehicle loop detector,Radar sensor,Push button,Pull switch,Remote control

Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
You will receive:
 Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room

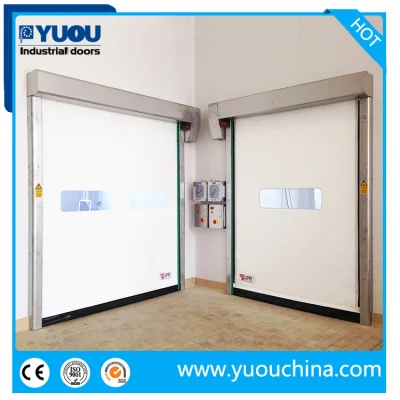

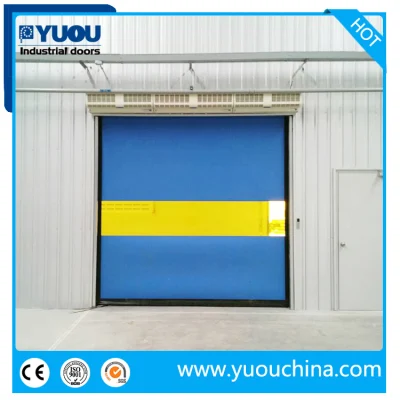

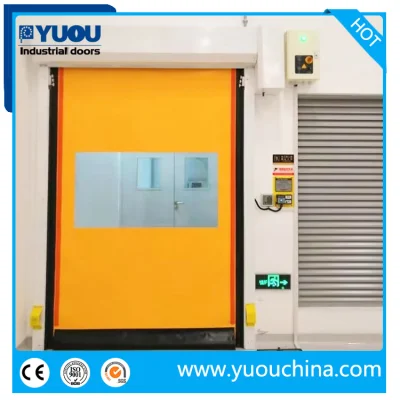

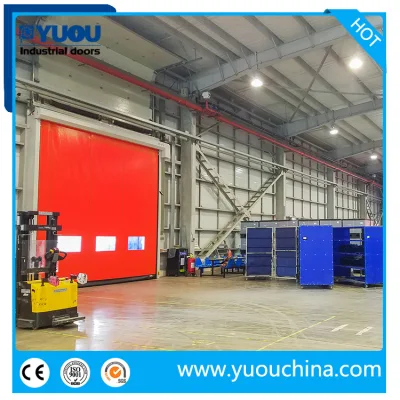

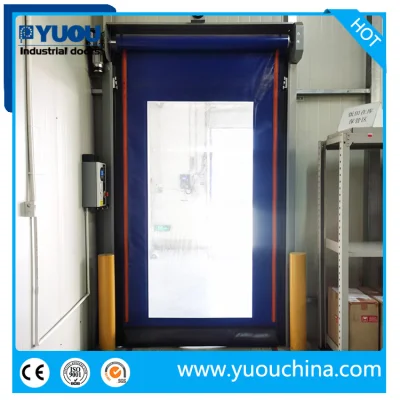

Products real shot:
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room Automatic PVC Fabric Interior GMP Zipper Type Airtight Self Recovery Reset Repairing High Speed Roll up Rapid Roller Shutter Fast Acting Door for Clean Room
